Catnip Week 10 KV Cache Attention Study

总体结论 / Primary conclusions

先给出可以由当前证据支持的结论，再展开实验方法。所有比例均来自同一个冻结 prompt/seed 的 observational capture，不冒充独立多次模型运行。

6.76%

Median effective support
≈ 422 / 6,240 keys

86.43%

Median mass carried by top 10% keys

40.01%

Mean sink + recent cached-history mass

1.52%

Median Q/K MXFP8 vs BF16 probability TV

结论 A — 存在显著的 effective sparsity，但不存在统一的 structural sparsity。 Softmax strict-zero rate 为 0.00%；然而 65.23% 的 rows 只需 ≤25% keys 即可解释其 entropy-equivalent support，53.85% 甚至只需 ≤10%。同时仍有 17.84% rows 的支持集 ≥75%，因此不能将整个 attention 声称为同一种稀疏模式。

结论 B — KV Cache 被实质使用，但相对 token count 被低配。 cached history 占 10/16 key frames，uniform expectation 是 62.5%；实际平均 mass 为 40.01%，current chunk 为 59.99%。history 不可忽略，却也不是均匀依赖：20.54% rows 对 history 的 mass <10%，43.23% rows 则超过 50%。

结论 C — 量化扰动通常小于 attention topology 自身的异质性。 Q/K MXFP8 重建相对 BF16 reference 的 median TV 为 1.52%，argmax agreement 为 94.33%；P-path numerical-zero median 为 0.00%，表明大多数 rows 的有效集中不是由 FP8 下溢凭空制造。

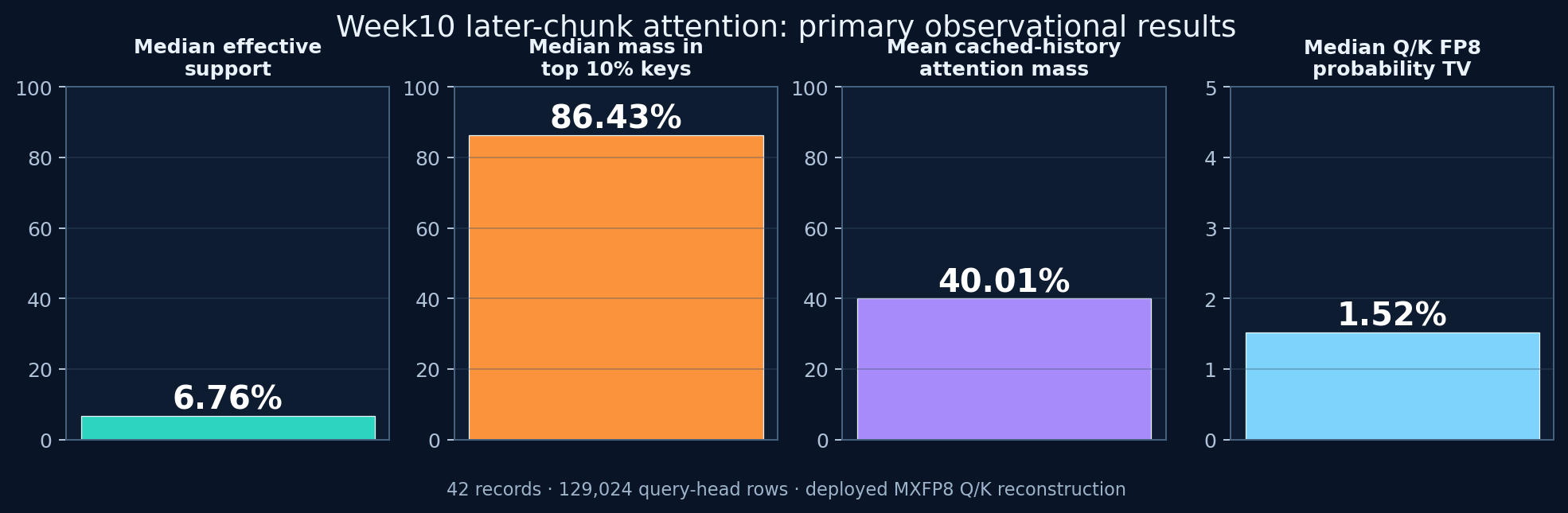

Executive metrics — Figure 1. 四个 headline metrics。注意 instrumented run 的 wall time 被明确排除在 baseline 性能证据之外。

Week 10 baseline binding

研究绑定到 Week 10 single_tile_compile 路径；observer 只在 compiled video-self-attention 边界读取数据，不改变 KV、Q/K/V、provider output 或 VAE 策略。

Accepted performance evidence

34.392 FPS

Week 10 paired evidence 的 candidate mean generated FPS

相对 Phase2 single-tile lane 的 paired median gain 为 1.837%。这是外部继承的 performance evidence；本研究不重新估计该数字。

Instrumented observational run

32.204 FPS

Observer-on run，仅用于确认完整 pipeline 与采集 gate

该值包含 Q/K 再量化、概率重建、统计与 D2H 落盘，不得作为 baseline regression。该 run 的 Week 10 correctness gate 为 PASS。

Acceptance boundary. Week 10 的 performance lane 通过，但 quality panel 未执行；因此 quality_accepted=false、production_accepted=false。本报告同样不作“画质没有下降”的表述。

Sink · 4 LF1,560 tokens

Recent cache · 6 LF2,340 tokens

Current chunk · 6 LF2,340 tokens

steady later chunk 的 query 为 6 LF / 2,340 tokens；K/V 共 16 LF / 6,240 tokens，物理顺序为 [sink4, recent6, current6]。每个 latent frame 对应 15×26 = 390 video tokens。

实验设计 / From production boundary to statistics

选择层、chunk 与 query 的原则在运行前冻结。采集没有保存巨大的 raw hidden-state payload，而是在 GPU 侧即时约化为概率统计和小型 heatmap arrays。

1 · Real boundarypost-RoPE、KV concat 后的 production Q/K；selected compiled attn1

2 · Stratified sampleL0/7/15/23/31/39/47，chunks 4/7/10，NFE 0/3

3 · All heads32 heads；每个 query LF 取 4×4 spatial grid，共 96 queries/head

4 · Reconstruct Pproduction signed-H128 + physical E4M3/E8M0 K32 Q/K

5 · Reduceentropy、top-k mass、region mass、TV、temporal/spatial heatmaps

Structural

重建 FP32 softmax 中严格等于零的比例。它回答“矩阵是否真的有 zero entries”。

Effective

exp(H)/Sk 衡量 entropy-equivalent support；top-1/5/10% mass 衡量 concentration。

Numerical MXFP8

模拟 kernel 的 per-K32 E4M3/E8M0 probability path，统计 underflow zeros 与局部 TV。

为什么这不是 129,024 次独立实验？

129,024 是 query-head rows 的描述性样本量：42 records × 32 heads × 96 sampled queries。它们嵌套于一个 prompt、一个 seed、一个完整模型运行中，存在强相关；因此报告不基于 row count 构造虚假的独立置信区间，也不把它写成 129,024 次 inference。

KV Cache 的实际作用

最直接的答案不是“cache 有或没有用”，而是后续 chunk 把多少概率质量分配给缓存历史、这种依赖如何随 layer / head / NFE 变化。

13.98%

Mean sink mass · uniform 25%

26.03%

Mean recent mass · uniform 37.5%

59.99%

Mean current mass · uniform 37.5%

1.60×

Current per-token enrichment vs uniform

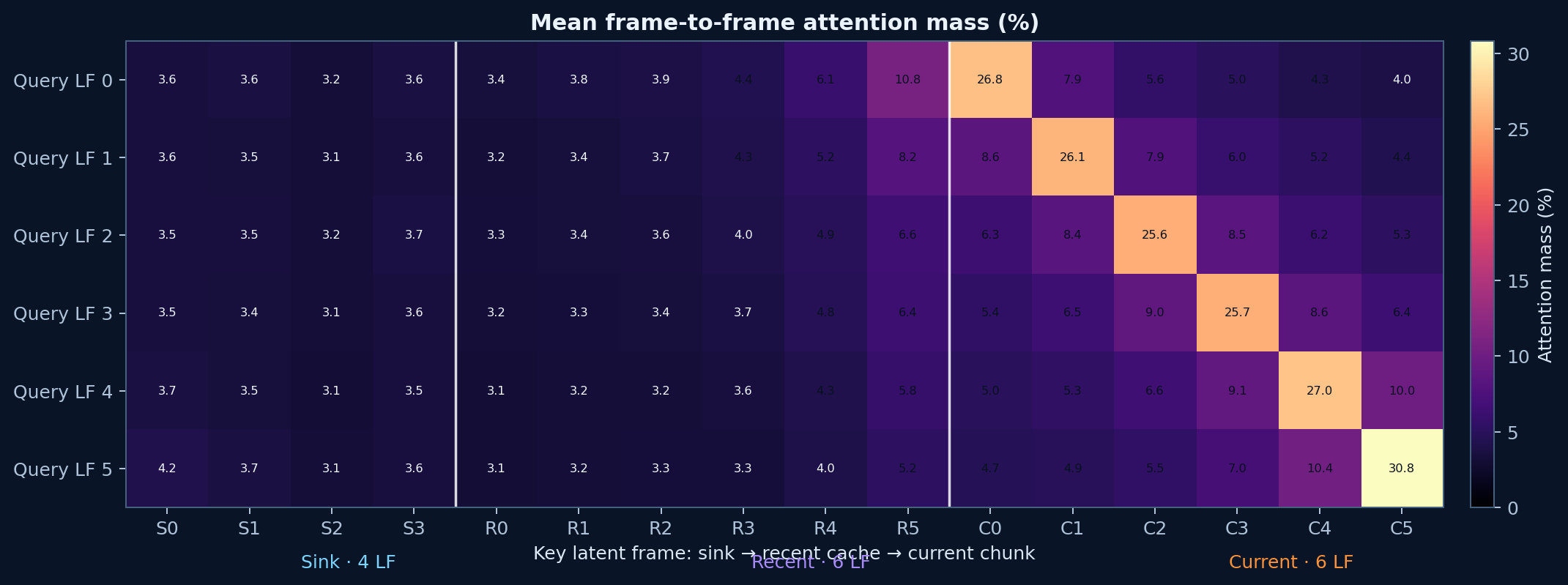

Temporal attention heatmap — Figure 2. 平均 frame-to-frame attention heatmap。每个 query-LF row 的 16 个 key-LF mass 加和为 100%。白线分隔 sink / recent / current。

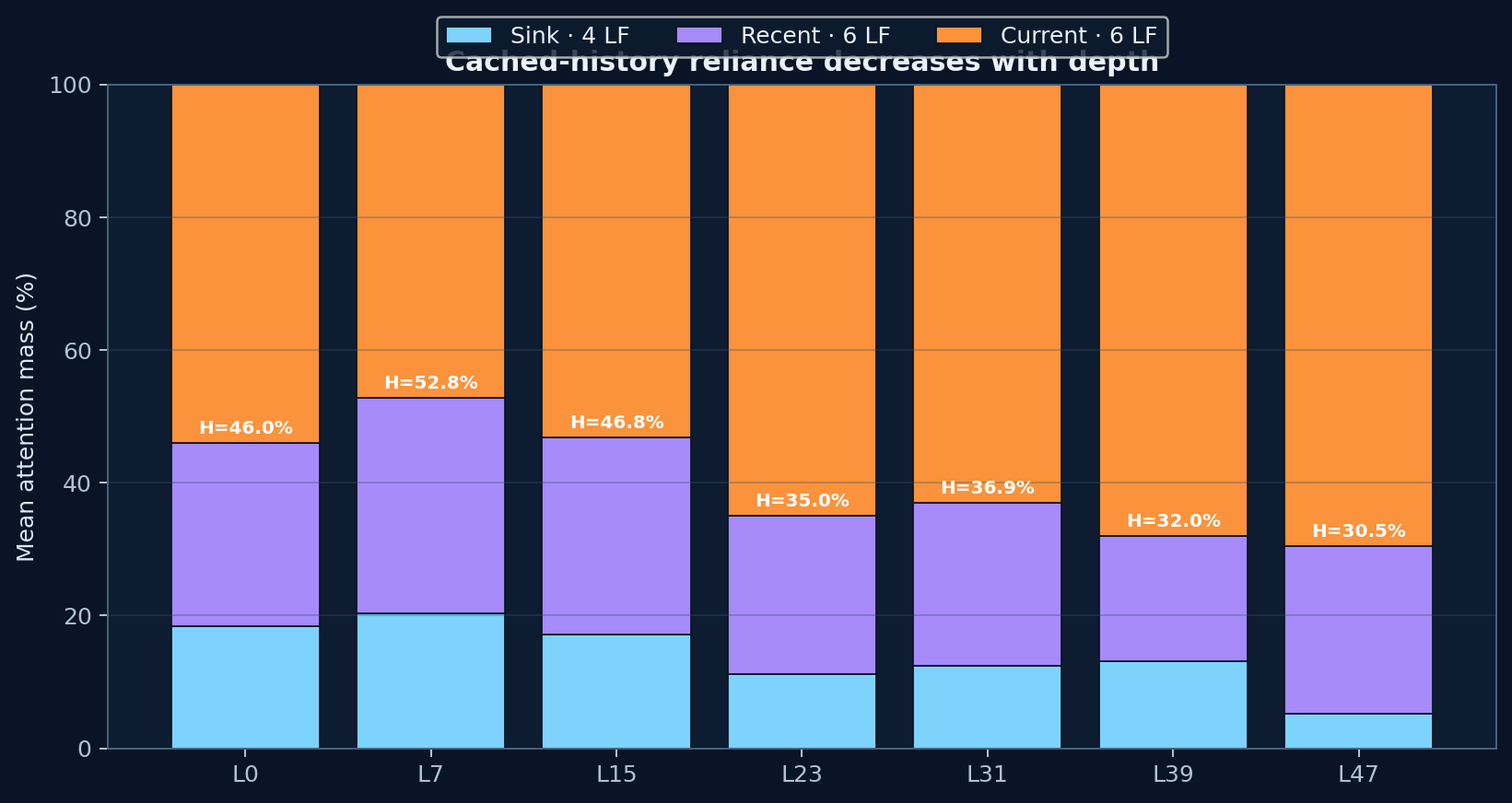

Region mass by layer — Figure 3. 深度方向的 region mass。history reliance 从 L7 的 52.82% 下降到 L47 的 30.46%；这更支持 layer-aware policy，而不是统一裁剪。

Layer summary

Layer	Sink	Recent	Current	History	Median support
L0	18.37%	27.66%	53.97%	46.03%	85.67%
L7	20.33%	32.50%	47.18%	52.82%	47.80%
L15	17.14%	29.66%	53.20%	46.80%	38.29%
L23	11.18%	23.87%	64.96%	35.04%	4.48%
L31	12.38%	24.57%	63.05%	36.95%	1.31%
L39	13.18%	18.77%	68.05%	31.95%	1.16%
L47	5.27%	25.19%	69.54%	30.46%	0.60%

Interpretation

history 平均 mass 为 40.01%，低于按 token count 的 62.5%，但仍是局部 attention output 的主要组成之一。
sink 平均 13.98%，recent 平均 26.03%；两者都被 under-attend，而 current 被显著 over-attend。
chunk 4/7/10 的 history mean 仅在 39.79%–40.28% 之间，说明该冻结内容的 later-chunk topology 相对稳定。
NFE 0 → NFE 3 时 history 从 42.48% 降至 37.54%，denoising 后段更依赖 current context。

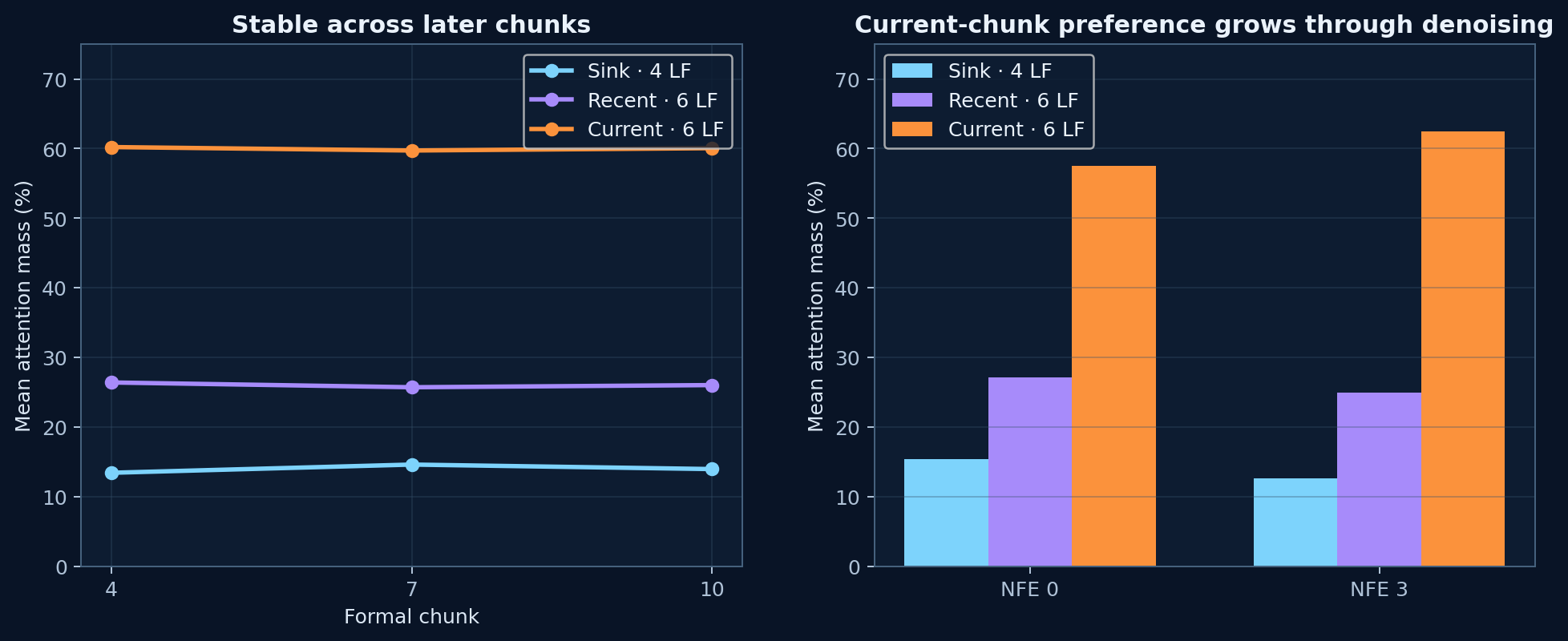

Chunk and position stability — Figure 4. 跨后续 chunk 稳定，但随 denoising position 有系统变化。该结果提示 runtime policy 可能需要同时感知 layer 与 NFE。

“稀疏性很大吗？”——是，但必须说完整

Median row 高度集中；分布尾部却包含一批接近 uniform 的 heads/queries。有效稀疏性是潜在优化信号，不等于已有结构化 sparse pattern。

53.85%

Rows with effective support ≤10%

65.23%

Rows with effective support ≤25%

55.24%

Rows whose top 10% keys carry ≥80%

17.84%

Diffuse minority: support ≥75%

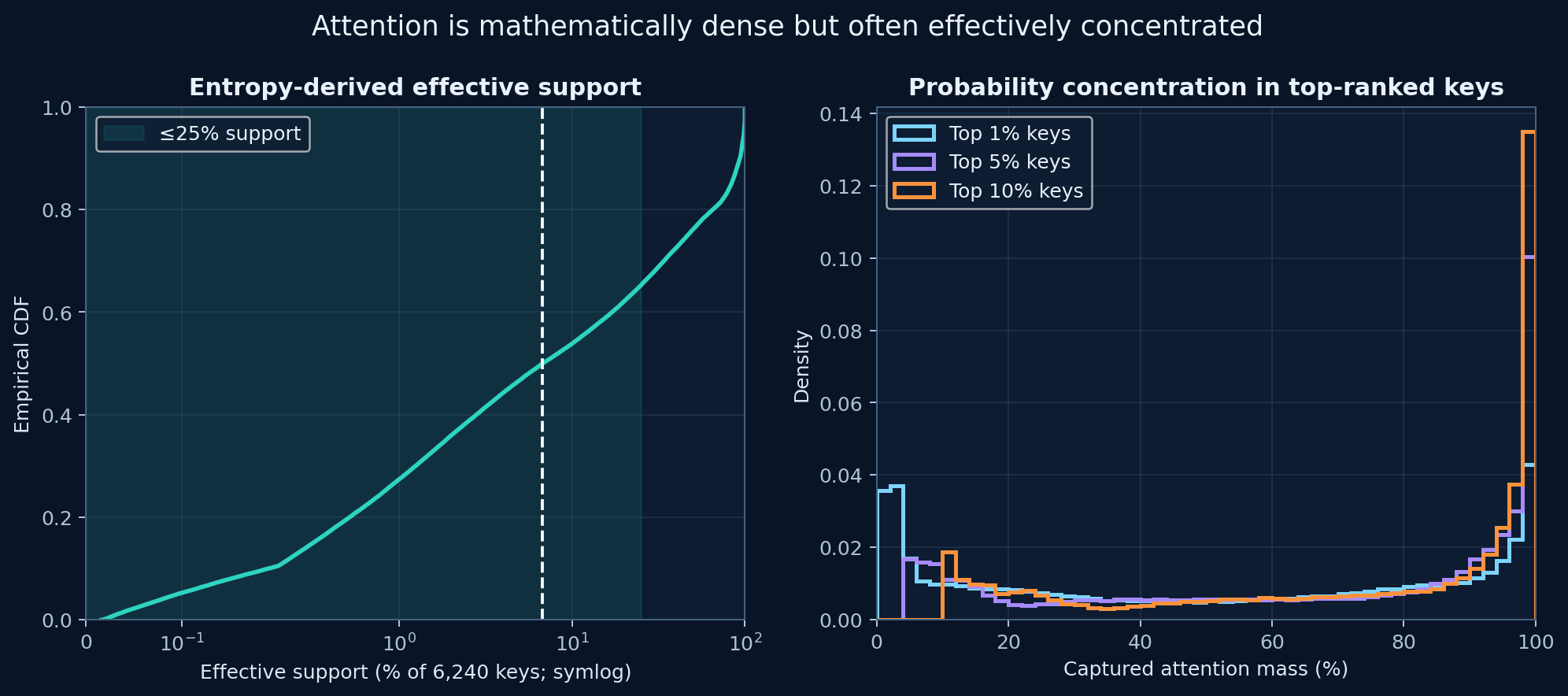

Sparsity distributions — Figure 5. 左：effective support 的 ECDF；右：top-ranked key mass。分布不是单峰，说明 average-only 结论会掩盖两类不同 attention rows。

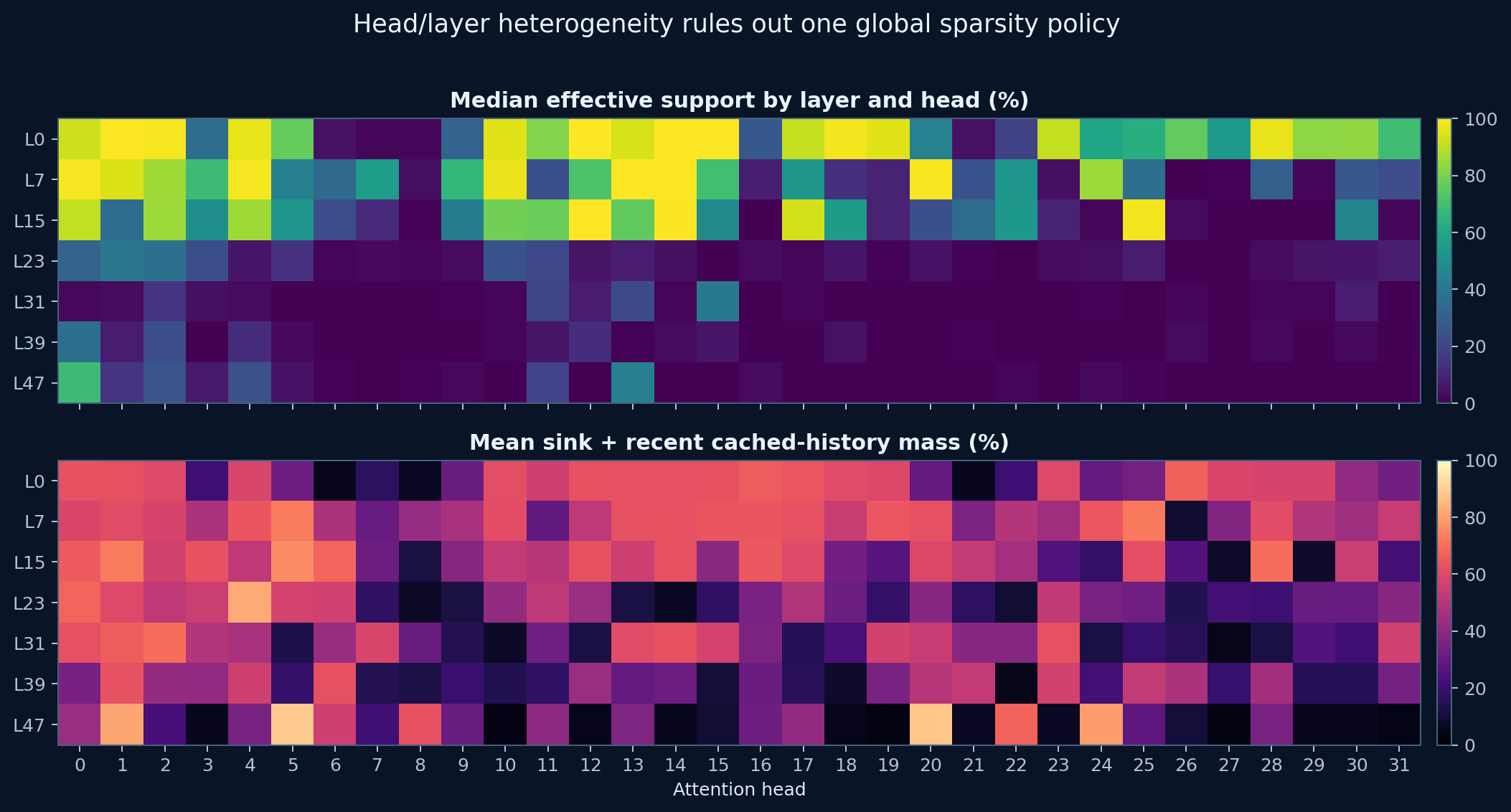

Head heterogeneity — Figure 6. 每个 layer/head 的 support 与 cached-history mass。Head identity 带来明显差异；例如 H27/H8 高度集中，而 H0 更 diffuse。

Most concentrated heads

Head	Median support	Mean support	Mean top10	History
H27	0.37%	8.97%	88.44%	21.97%
H8	1.07%	4.22%	94.59%	25.13%
H29	1.11%	15.32%	82.30%	27.75%
H26	1.21%	14.43%	83.56%	27.24%
H7	1.33%	12.27%	87.03%	27.34%
H19	1.45%	18.77%	80.38%	37.83%
H23	1.68%	17.74%	81.10%	44.17%
H21	1.70%	10.80%	85.48%	30.12%

Most diffuse heads

Head	Median support	Mean support	Mean top10	History
H0	61.12%	57.34%	43.35%	56.47%
H13	45.77%	49.57%	51.13%	45.75%
H2	40.64%	53.06%	46.46%	51.65%
H1	28.18%	42.80%	56.77%	66.63%
H4	25.94%	46.26%	55.69%	56.29%
H10	25.05%	42.31%	60.52%	34.85%
H11	25.01%	34.73%	61.67%	39.71%
H15	23.69%	37.72%	61.44%	37.28%

不能直接推出 sparse-kernel speedup。 Top-k indices 目前不是预先结构化 block，选择与压缩本身有成本；17.84% diffuse rows 还需要 fallback。必须先证明可预测的 block pattern、局部 output error 与 end-to-end quality，再讨论 kernel promotion。

Q/K 与 probability quantization 的影响

这里比较的是同一真实 BF16 boundary：一边经过 production signed-H128 + E4M3/E8M0 K32 Q/K，另一边用 BF16 boundary tensors 做 FP32 reference matmul。TV 是局部 attention-row 指标，不是视频质量指标。

1.52%

Median Q/K probability TV

94.33%

Q/K argmax agreement

1.06%

Median P-path proxy TV

2.45%

Mean numerical-zero rate · median 0.00%

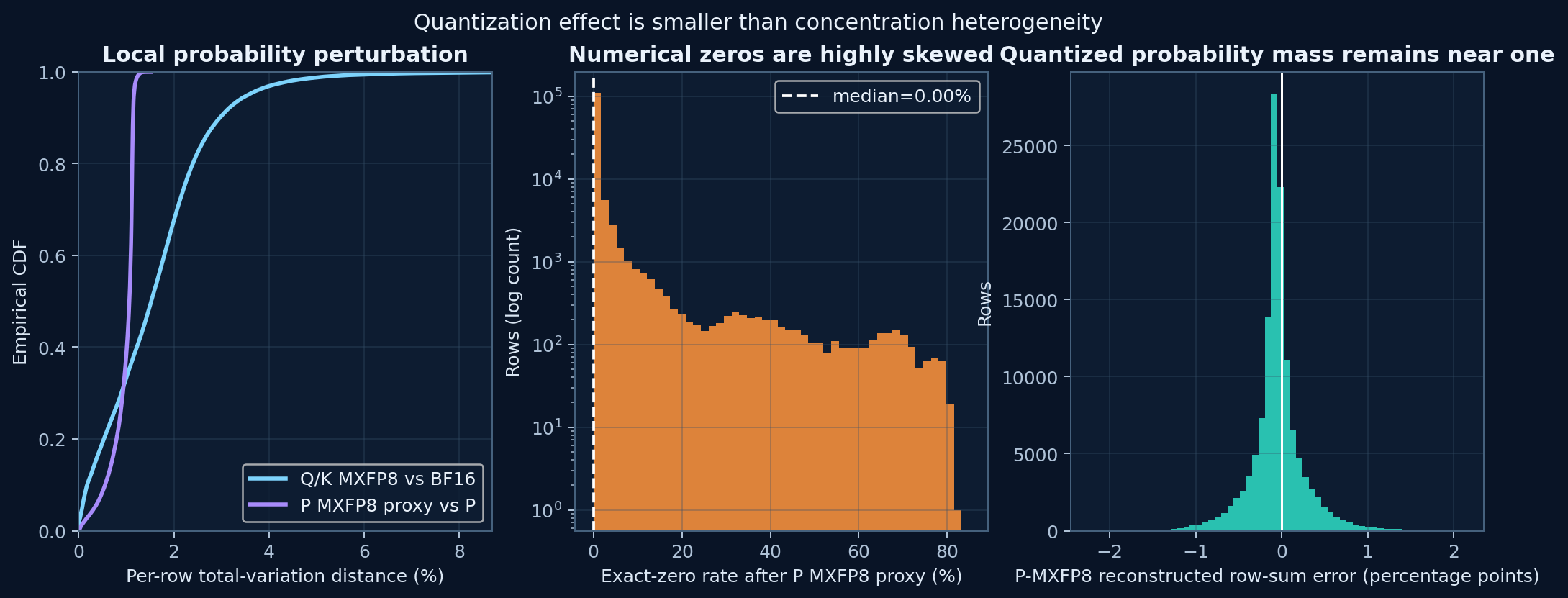

Quantization effect distributions — Figure 7. Q/K TV 与 P-path TV 通常较小；P zero-rate 强烈右偏，少量 rows 可出现很高 underflow，但 median 为零。

What the data supports

1.20% rows 的 Q/K probability TV >5%；仅 0.03% >10%。
36.63% rows 至少有一个 P-MXFP8 numerical zero；但只有 5.88% rows 的 zero-rate >10%。
P proxy row sum 的 median 是 0.999392，表明局部 mass conservation 误差较小。

What it does not support

不能把 Q/K TV 等同于 DiT hidden-state error 或视频 perceptual quality。
observer 重建使用 production quantizer bytes，但不声称 bit-exact 复刻 fused kernel accumulator ordering。
不能用平均 2.45% P-zero rate 宣称 kernel 已产生稳定可利用的结构化零块。

Temporal & spatial heatmaps

Temporal heatmap 回答“看哪一帧”，spatial heatmap 回答“在该 region 内看哪个 latent-grid location”。所有图与本页一同部署，不依赖任何外部站点。

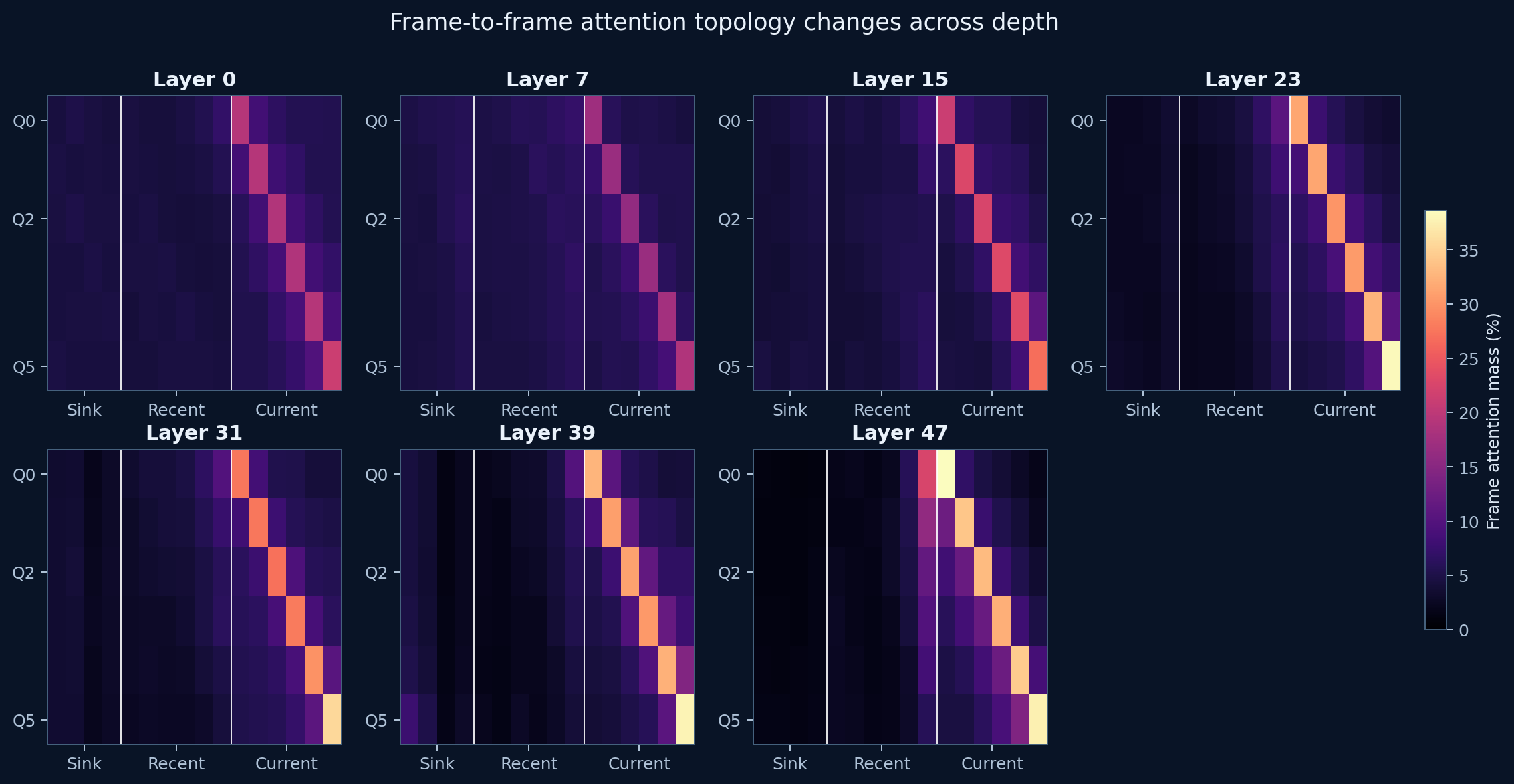

Temporal heatmaps by layer — Figure 8. 七个 depth-stratified layers 的 6×16 frame topology。越深的层总体更偏向 current chunk，但不同 query LF 的模式并不完全相同。

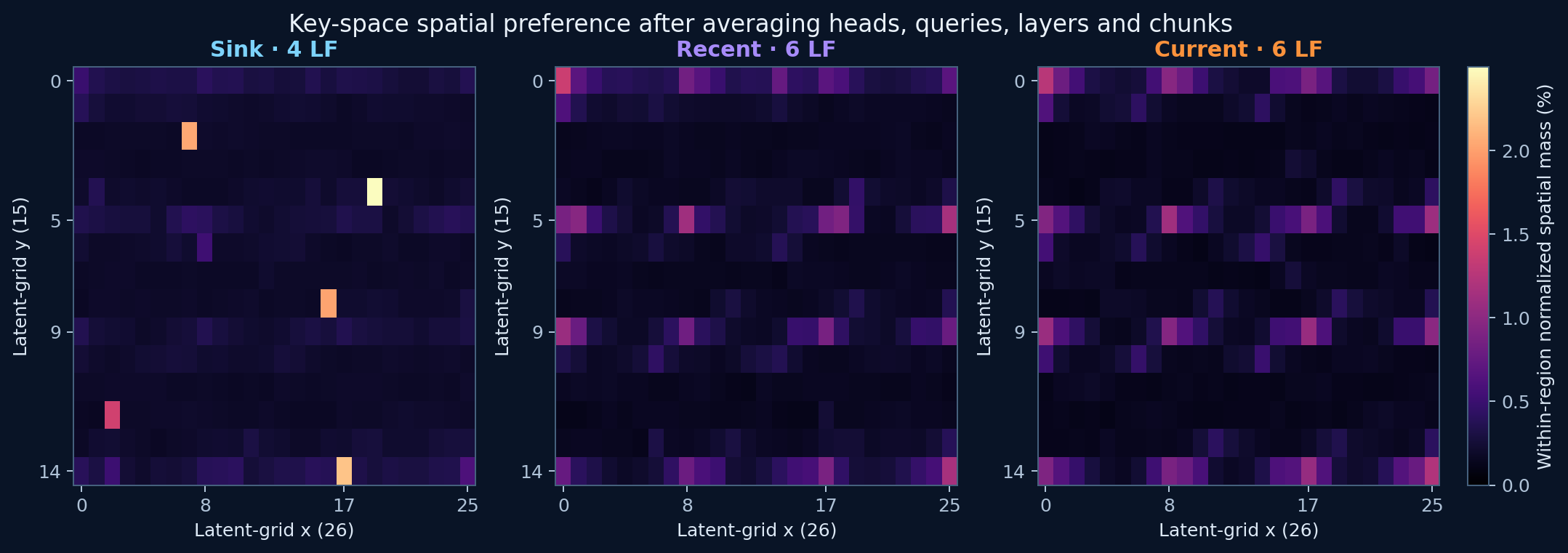

Region spatial maps — Figure 9. 在 sink / recent / current 各自内部归一化后的 key spatial preference。该图用于观察空间集中，不应跨 region 比较绝对 mass；绝对 region mass 见 Figure 2–4。

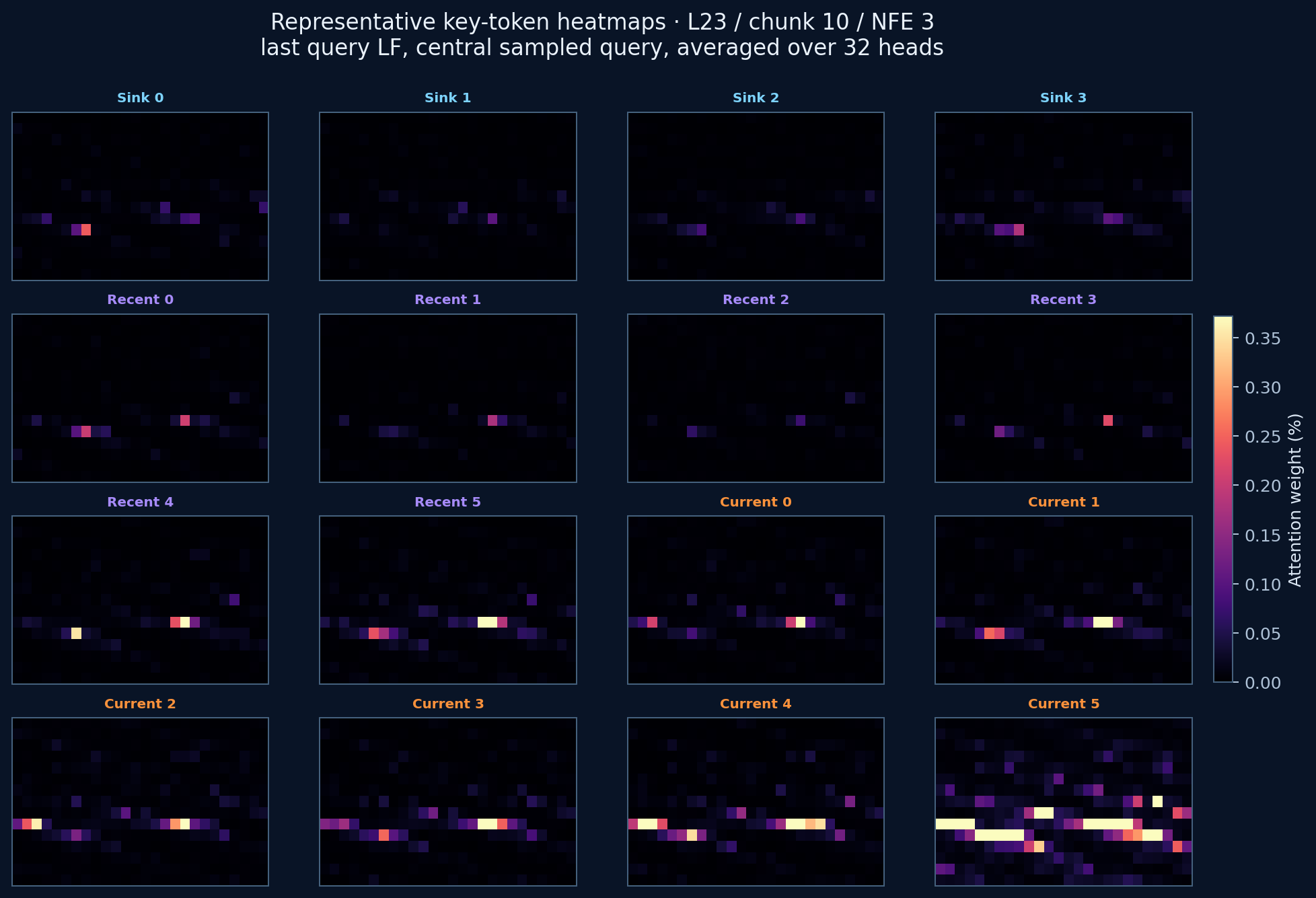

Representative key heatmaps — Figure 10. L23 / chunk10 / NFE3 的代表性 query 对全部 16 个 key latent frames 的 15×26 heatmaps。颜色范围按该 record 的 99.5th percentile 截断，避免单点掩盖结构。

当前判断与下一步优化空间

当前数据支持“建立 selective hypothesis”，尚不支持“改 production KV policy”。最有价值的是将下一轮实验设计成可证伪的 causal ablation。

Recommended sequence

Local output ablation. 对同一 sampled Q/K/V，分别 drop sink、drop recent、drop all history，并重归一化 P；测 pre-projection attention-output rel-L2 与 cosine。
Block predictability. 按 LF×spatial blocks 统计 top-mass blocks 的 Jaccard stability，检查 indices 能否由 layer/head/NFE 预测。
Selective policy. 先在晚层与高集中 heads 上试 cache compression；diffuse heads 保持 dense fallback。
Causal full model. 至少多 prompt、多 seed 做 paired run；同时记录局部 output error、end-to-end quality panel 与真实 kernel timing。

Promotion gates

Observed: effective concentration, region mass, depth/head/NFE heterogeneity.
Observed: later-chunk temporal stability for this prompt/seed.
Not yet: causal proof that cached keys can be removed without output/quality loss.
Not yet: structured block pattern that amortizes sparse-index overhead.
Not yet: end-to-end FPS improvement on the Week 10 paired lane.

最合理的工程方向：不是把 4+6 KV Cache 整体砍掉，而是研究 layer/head/NFE-aware selective KV。当前层级差异很大：L7 history mean 52.82%，L47 只有 30.46%；这为分层策略提供了明确 hypothesis。

完整 record-level 结果

下表列出全部 42 records，每条包含 3,072 query-head rows。表格可滚动；所有 headline conclusions 均可回溯到这些 records 与内嵌 JSON summary。

Record	L	Chunk	NFE	Median support	Median top10	Sink	Recent	Current	History	Median QK-TV	Mean P-zero
`layer00_chunk04_position0`	0	4	0	77.66%	27.06%	16.46%	25.04%	58.50%	41.50%	0.36%	0.01%
`layer00_chunk04_position3`	0	4	3	87.81%	22.18%	19.33%	29.96%	50.71%	49.29%	0.26%	1.48%
`layer00_chunk07_position0`	0	7	0	77.91%	27.02%	17.66%	25.08%	57.26%	42.74%	0.38%	0.01%
`layer00_chunk07_position3`	0	7	3	88.03%	22.24%	20.64%	29.94%	49.41%	50.59%	0.26%	1.49%
`layer00_chunk10_position0`	0	10	0	77.64%	26.26%	16.38%	25.53%	58.09%	41.91%	0.37%	0.01%
`layer00_chunk10_position3`	0	10	3	88.73%	21.86%	19.78%	30.39%	49.82%	50.18%	0.26%	1.46%
`layer07_chunk04_position0`	7	4	0	53.04%	44.47%	21.71%	35.91%	42.38%	57.62%	0.69%	0.02%
`layer07_chunk04_position3`	7	4	3	39.12%	54.19%	17.47%	29.77%	52.77%	47.23%	0.72%	0.08%
`layer07_chunk07_position0`	7	7	0	52.23%	45.32%	22.35%	34.36%	43.29%	56.71%	0.71%	0.01%
`layer07_chunk07_position3`	7	7	3	42.88%	51.49%	18.59%	30.04%	51.38%	48.62%	0.68%	0.08%
`layer07_chunk10_position0`	7	10	0	53.22%	44.11%	23.05%	35.29%	41.65%	58.35%	0.72%	0.01%
`layer07_chunk10_position3`	7	10	3	43.02%	51.79%	18.78%	29.61%	51.60%	48.40%	0.70%	0.08%
`layer15_chunk04_position0`	15	4	0	40.79%	52.15%	18.33%	34.21%	47.46%	52.54%	0.87%	0.05%
`layer15_chunk04_position3`	15	4	3	31.45%	59.18%	14.98%	26.13%	58.90%	41.10%	0.79%	0.24%
`layer15_chunk07_position0`	15	7	0	41.80%	51.95%	19.04%	32.81%	48.14%	51.86%	0.89%	0.05%
`layer15_chunk07_position3`	15	7	3	31.67%	58.31%	15.55%	25.27%	59.17%	40.83%	0.75%	0.24%
`layer15_chunk10_position0`	15	10	0	44.46%	49.80%	19.57%	33.26%	47.17%	52.83%	0.85%	0.05%
`layer15_chunk10_position3`	15	10	3	34.58%	57.09%	15.37%	26.26%	58.37%	41.63%	0.75%	0.25%
`layer23_chunk04_position0`	23	4	0	5.34%	87.71%	11.75%	27.82%	60.43%	39.57%	1.68%	0.15%
`layer23_chunk04_position3`	23	4	3	3.03%	91.30%	8.46%	24.13%	67.40%	32.60%	1.66%	0.16%
`layer23_chunk07_position0`	23	7	0	6.19%	86.51%	14.72%	24.37%	60.91%	39.09%	1.67%	0.13%
`layer23_chunk07_position3`	23	7	3	3.36%	89.99%	9.97%	21.09%	68.94%	31.06%	1.65%	0.15%
`layer23_chunk10_position0`	23	10	0	5.80%	86.52%	13.32%	24.73%	61.94%	38.06%	1.66%	0.13%
`layer23_chunk10_position3`	23	10	3	3.29%	90.39%	8.84%	21.04%	70.12%	29.88%	1.66%	0.17%
`layer31_chunk04_position0`	31	4	0	1.63%	97.04%	13.90%	25.40%	60.70%	39.30%	2.24%	2.12%
`layer31_chunk04_position3`	31	4	3	1.00%	98.28%	11.63%	26.94%	61.44%	38.56%	2.22%	3.07%
`layer31_chunk07_position0`	31	7	0	1.80%	96.38%	14.84%	21.81%	63.35%	36.65%	2.22%	1.74%
`layer31_chunk07_position3`	31	7	3	0.98%	98.34%	10.77%	24.15%	65.08%	34.92%	2.24%	3.20%
`layer31_chunk10_position0`	31	10	0	1.69%	96.64%	12.57%	22.58%	64.85%	35.15%	2.23%	1.67%
`layer31_chunk10_position3`	31	10	3	0.98%	98.24%	10.56%	26.53%	62.90%	37.10%	2.18%	3.31%
`layer39_chunk04_position0`	39	4	0	1.66%	94.72%	14.10%	21.39%	64.51%	35.49%	2.11%	3.45%
`layer39_chunk04_position3`	39	4	3	0.66%	98.44%	10.10%	16.63%	73.26%	26.74%	1.96%	5.20%
`layer39_chunk07_position0`	39	7	0	1.87%	94.14%	16.35%	20.96%	62.69%	37.31%	2.10%	3.34%
`layer39_chunk07_position3`	39	7	3	0.69%	98.35%	11.59%	17.38%	71.02%	28.98%	1.97%	5.44%
`layer39_chunk10_position0`	39	10	0	2.05%	93.94%	15.85%	19.72%	64.44%	35.56%	2.11%	3.12%
`layer39_chunk10_position3`	39	10	3	0.72%	98.39%	11.08%	16.55%	72.37%	27.63%	1.99%	5.34%
`layer47_chunk04_position0`	47	4	0	0.63%	99.39%	6.01%	25.04%	68.95%	31.05%	2.26%	8.04%
`layer47_chunk04_position3`	47	4	3	0.44%	99.69%	3.47%	21.01%	75.52%	24.48%	2.20%	9.80%
`layer47_chunk07_position0`	47	7	0	0.73%	99.20%	7.61%	27.37%	65.02%	34.98%	2.33%	8.46%
`layer47_chunk07_position3`	47	7	3	0.46%	99.70%	4.53%	25.11%	70.36%	29.64%	2.23%	10.56%
`layer47_chunk10_position0`	47	10	0	0.89%	99.05%	6.01%	27.72%	66.27%	33.73%	2.36%	8.28%
`layer47_chunk10_position3`	47	10	3	0.50%	99.70%	3.97%	24.88%	71.15%	28.85%	2.25%	10.29%

Embedded machine-readable analysis summary

下方数据同样写入 data/analysis_summary.json；HTML 内嵌副本可用于部署后的审计。

Evidence, failure handling & claim boundary

Capture gate

formal observer calls: 385 / expected 385
warmup observer calls: 175 / expected 175
idle calls: 0
opaque sink value: 560 / expected 560
raw Q/K/V persisted: no; only reduced NPZ statistics

Excluded infrastructure runs

r01 · stage load_te_gpu0 · OutOfMemoryError. 0 attention records; excluded before model forward.

Bound artifacts and SHA-256

Artifact	SHA-256	Bytes	Resolved path
Frozen study config	`783ecdd7fe81c6c2…`	1,986	`/workspace/catnip-week10-kv-cache-attention-study/configs/study_v1.json`
Methodology	`7de9496102fb5e38…`	3,554	`/workspace/catnip-week10-kv-cache-attention-study/METHODOLOGY.md`
Capture manifest	`b1523df0362ec4f9…`	210,915	`/workspace/catnip-week10-kv-cache-attention-study/results/capture_r02/capture_manifest.json`
Week 10 accepted pair summary	`01f286b3609a8456…`	85,945	`/workspace/week10-vae-decode-optimization/results/phase3_full_model/pairs_r01/FINAL_SUMMARY_V2.json`
Week 10 accepted report	`560b3cc7dca8cb60…`	17,550	`/workspace/week10-vae-decode-optimization/reports/PHASE03_FULL_MODEL_RESULT.md`
Instrumented run.json	`ecdb7d0a9bdffcdb…`	43,392	`/workspace/catnip-week10-kv-cache-attention-study/results/week10_observed_r02/run.json`

Generalization boundary. 本报告对一个 frozen prompt/seed 做细粒度 descriptive analysis。它不证明其他内容、其他 seed、landscape geometry 或未来模型版本具有相同 sparsity；也不证明任何 KV pruning 的质量安全性。
